Studies

Use Studies to view Voltage Drop, Short Circuit, and Loading reports.

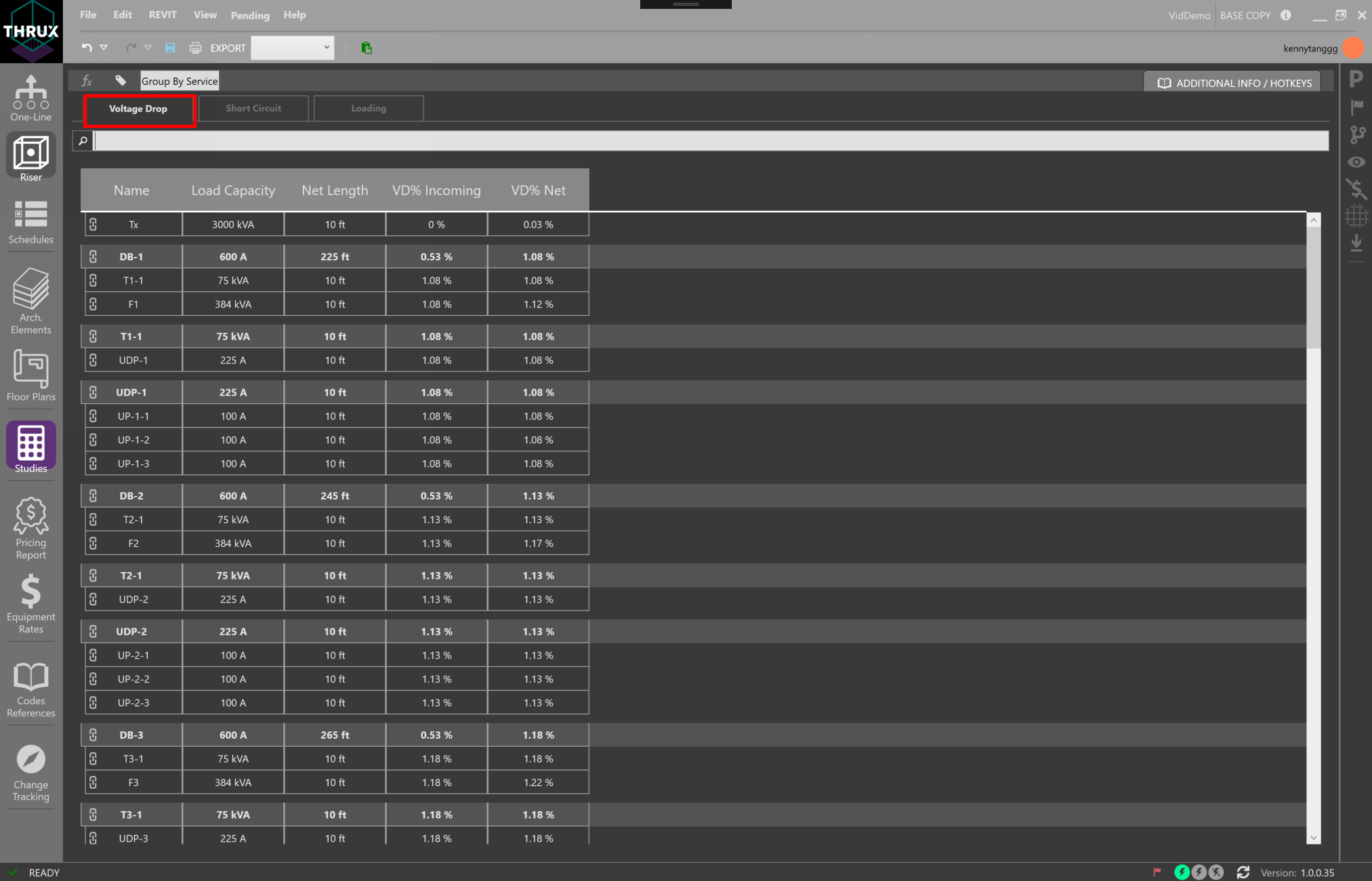

Voltage Drop

The Voltage Drop study presents the VD% Net at all points of distribution grouped by their associated loads.

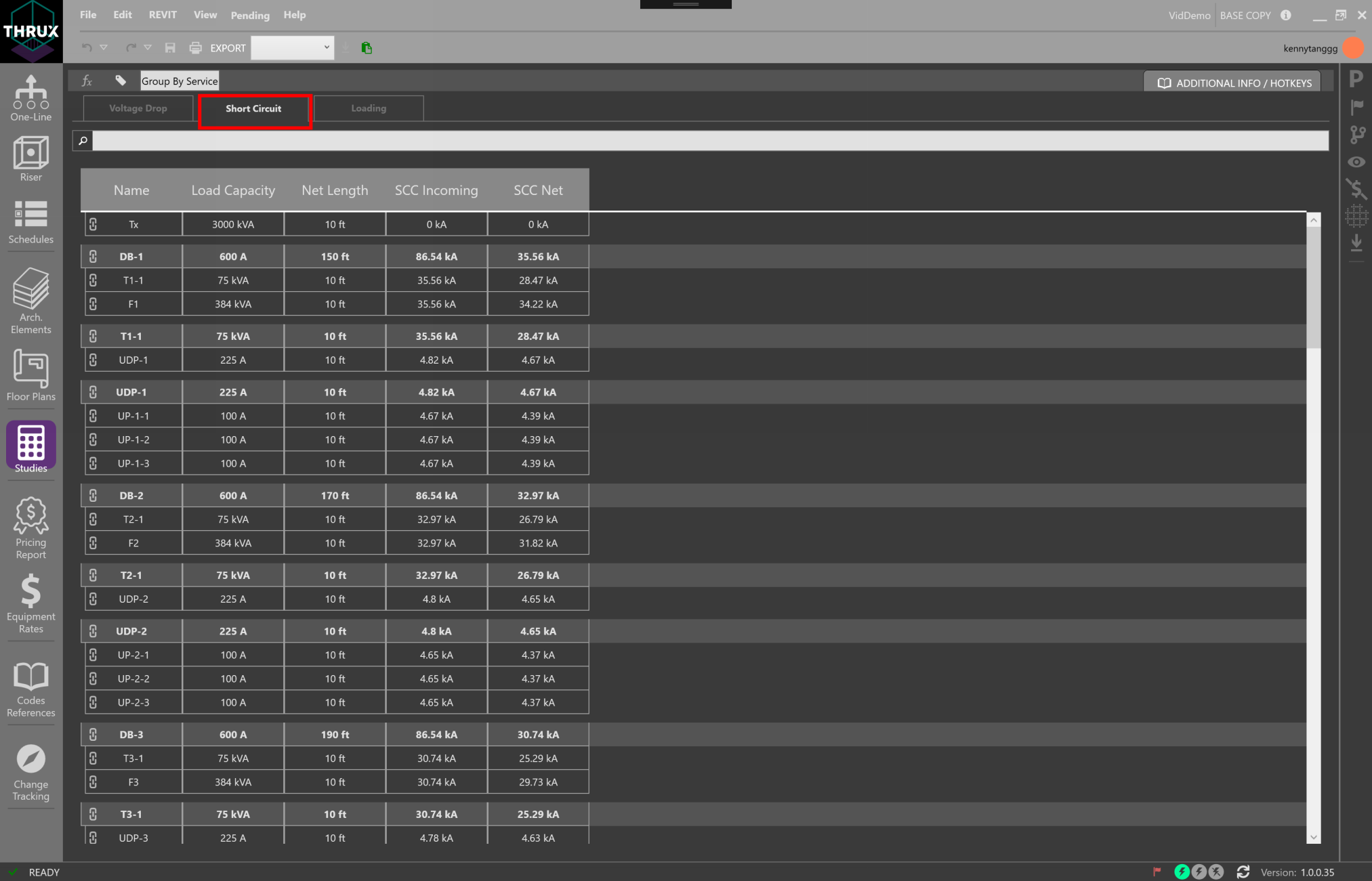

Short Circuit

The Short Circuit study presents the SCC Net at all points of distribution Equipment with all downstream branch networks.

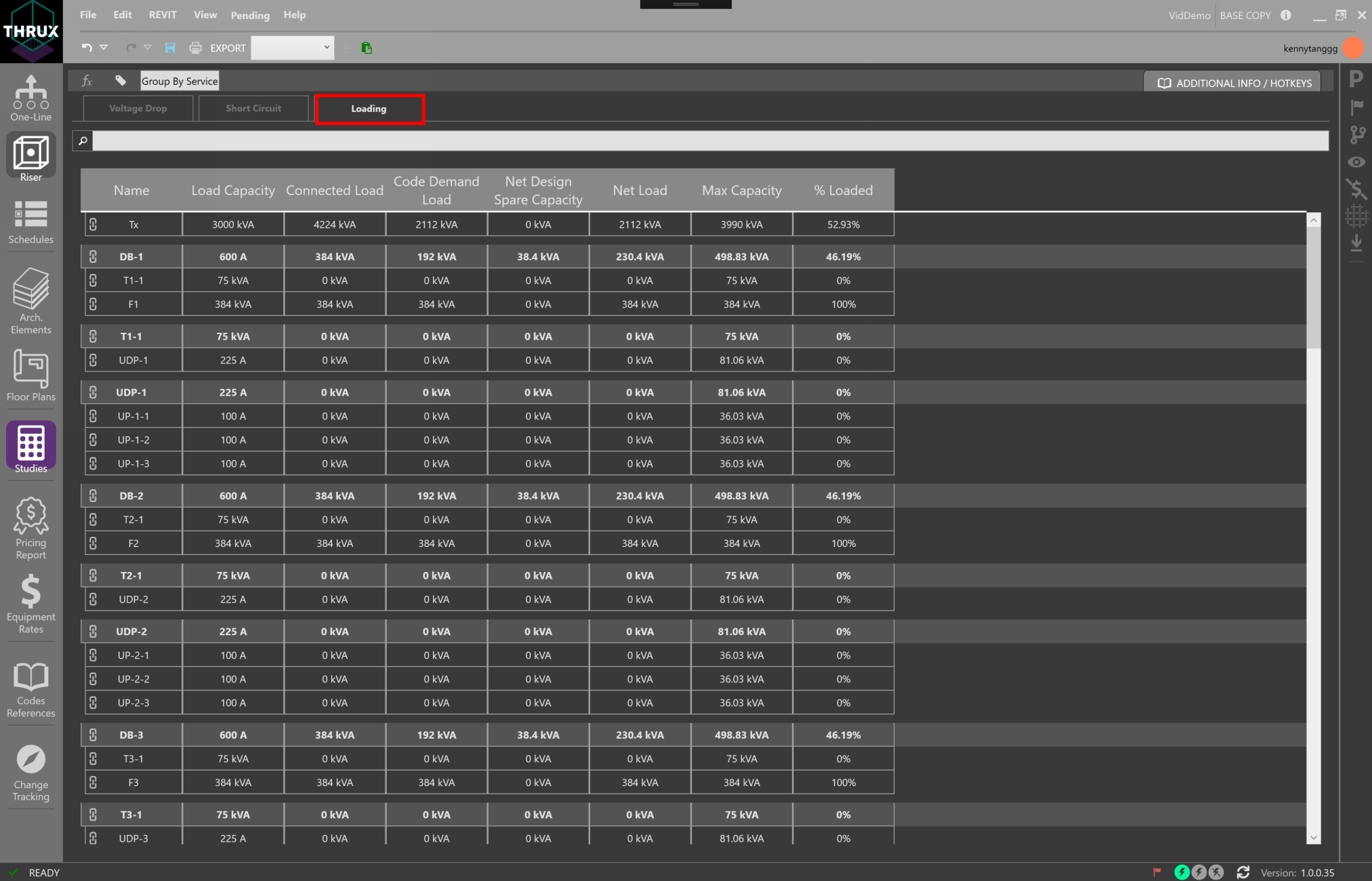

Loading

The Loading study presents the Load Capacity, Connected Load, Code Demand Load, Net Design Spare Capacity, Net Load, Max Capacity, and % Loaded values at all points of distribution Equipment with all downstream branch networks.

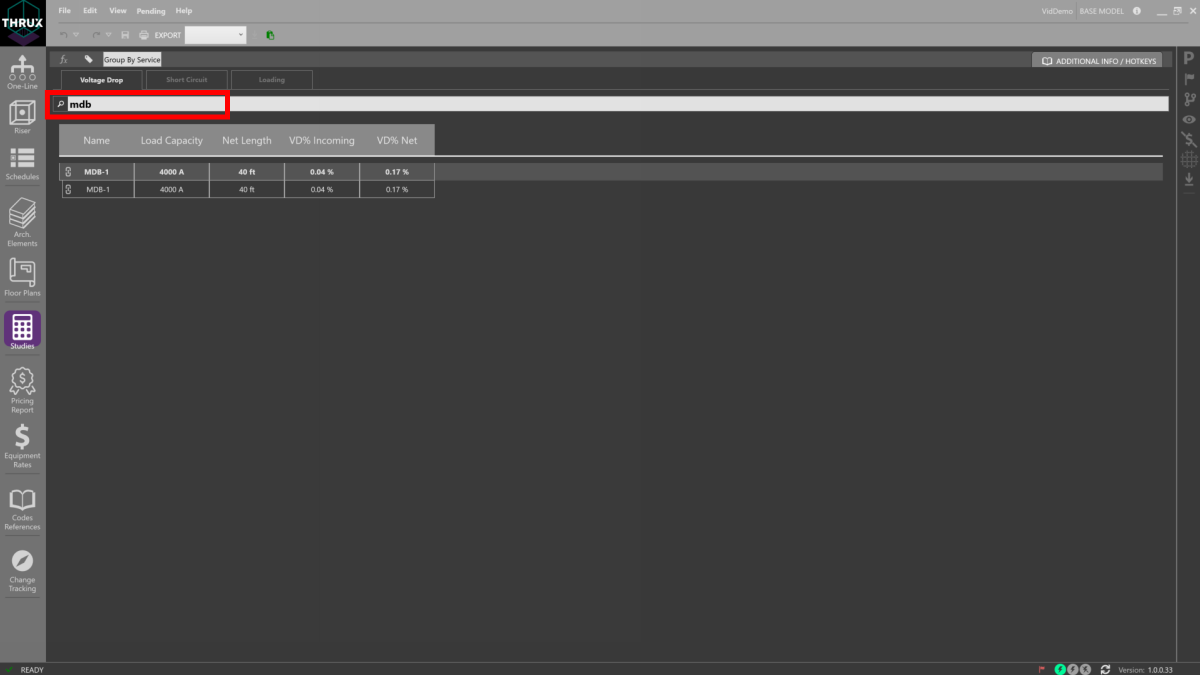

Searching

Search for specific pieces of Equipment by name.

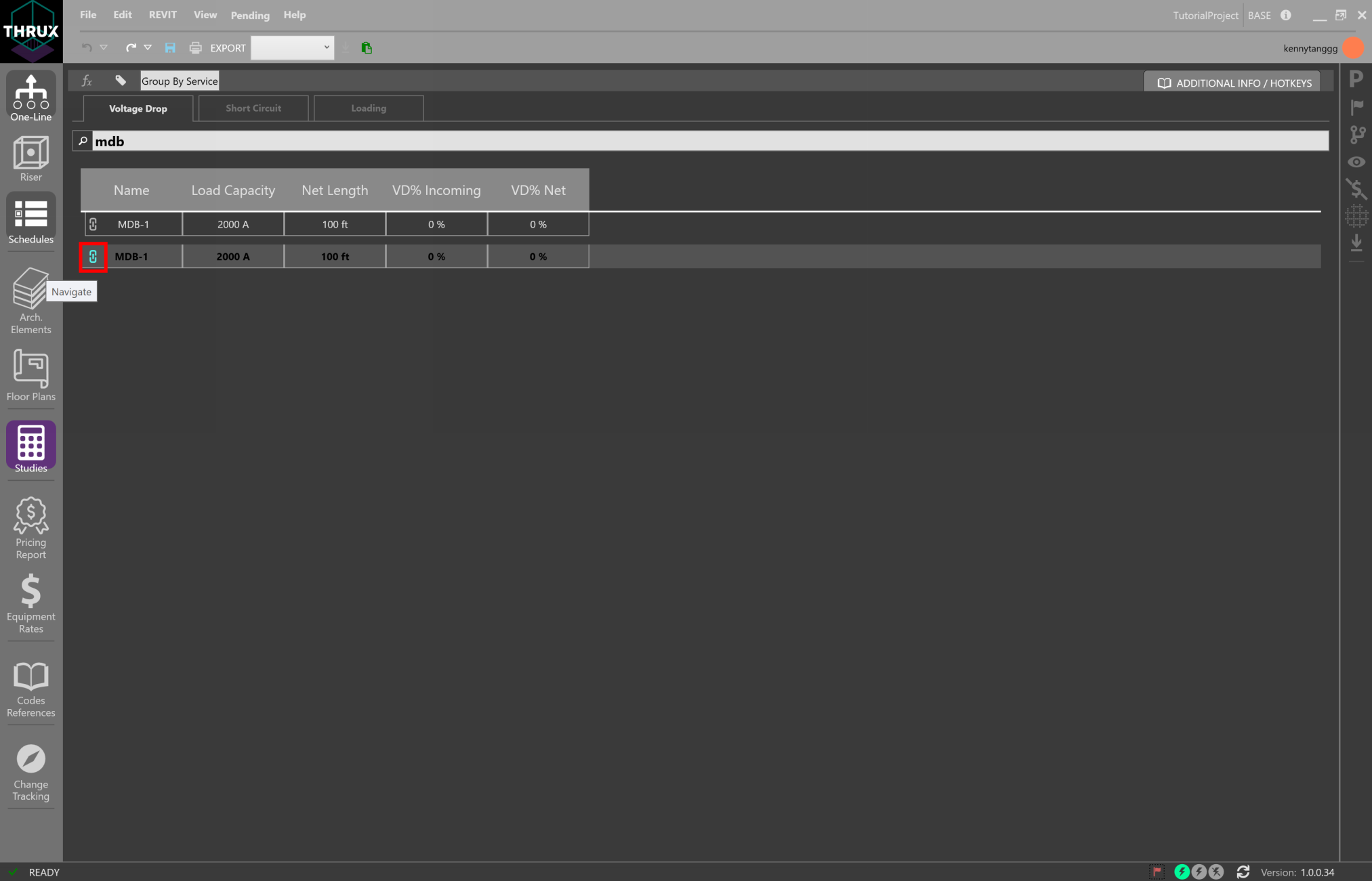

Navigate

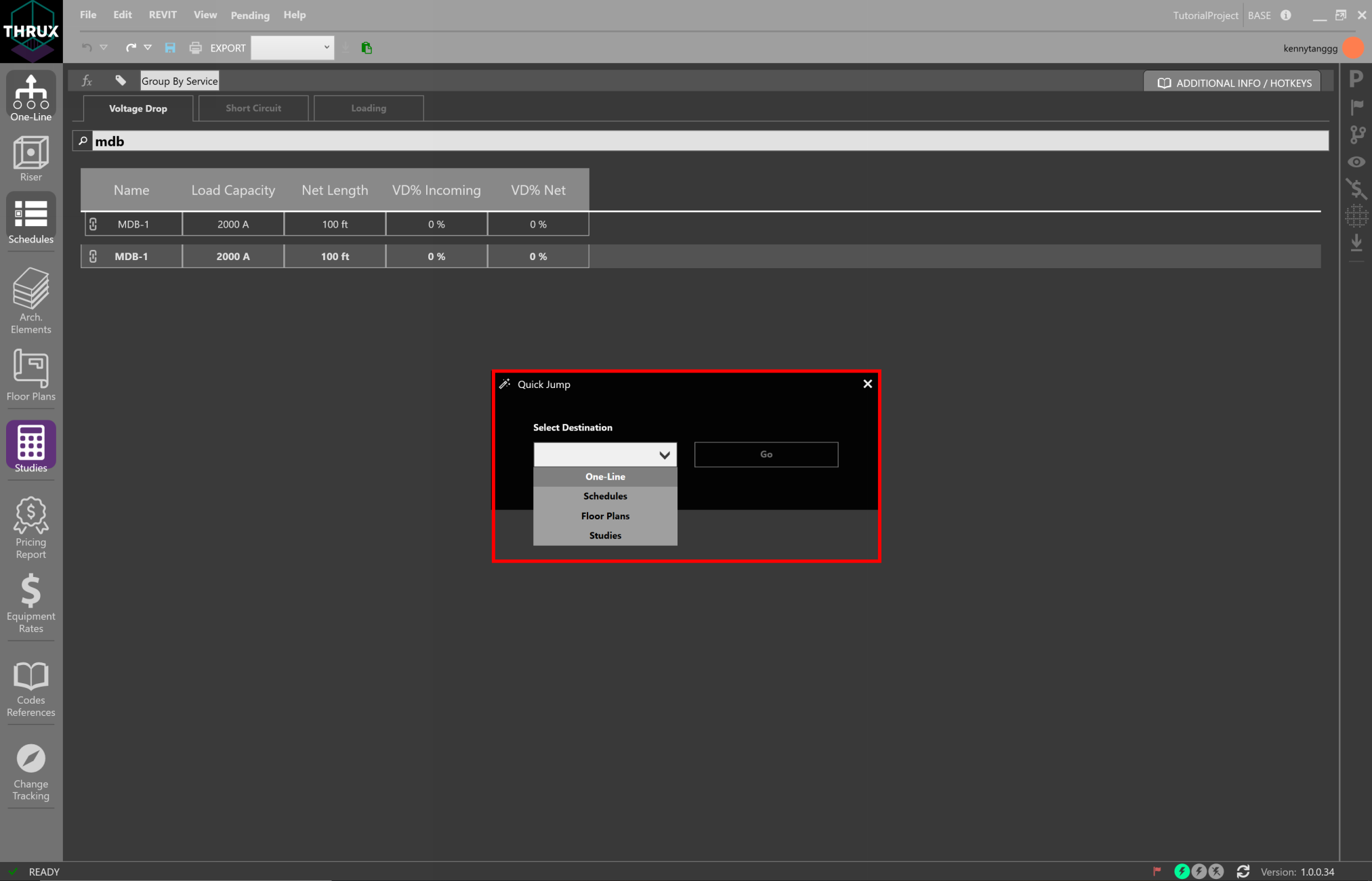

Navigate to other Workspaces by using the Navigate button.

Select a destination and hit Go.

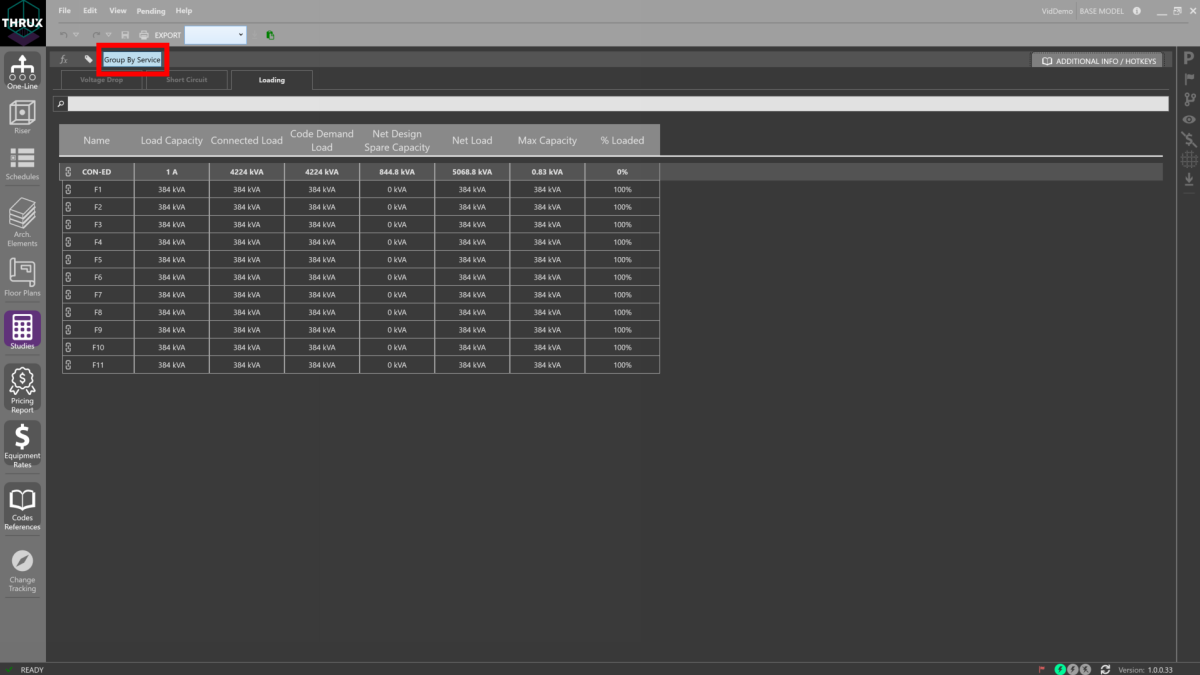

Group by Service

Sort items by grouping each load by the Service or source (Utility or Generator) it is fed from.

Printing and Exporting

The Studies and Pricing Report can be printed by clicking the Print icon located at the top toolbar. They can also be exported to .xml, .csv, or .json.

Use the Copy to Clipboard button to copy and paste to Excel.
