Calculation SettingsΒΆ

Specify additional calculation settings here.

For example, the Temperature Rating Threshold (NEC Table 310.15(B)) for conductors can be specified here. The default is 110 amps.

../../../../_images/calculation_settings.PNG

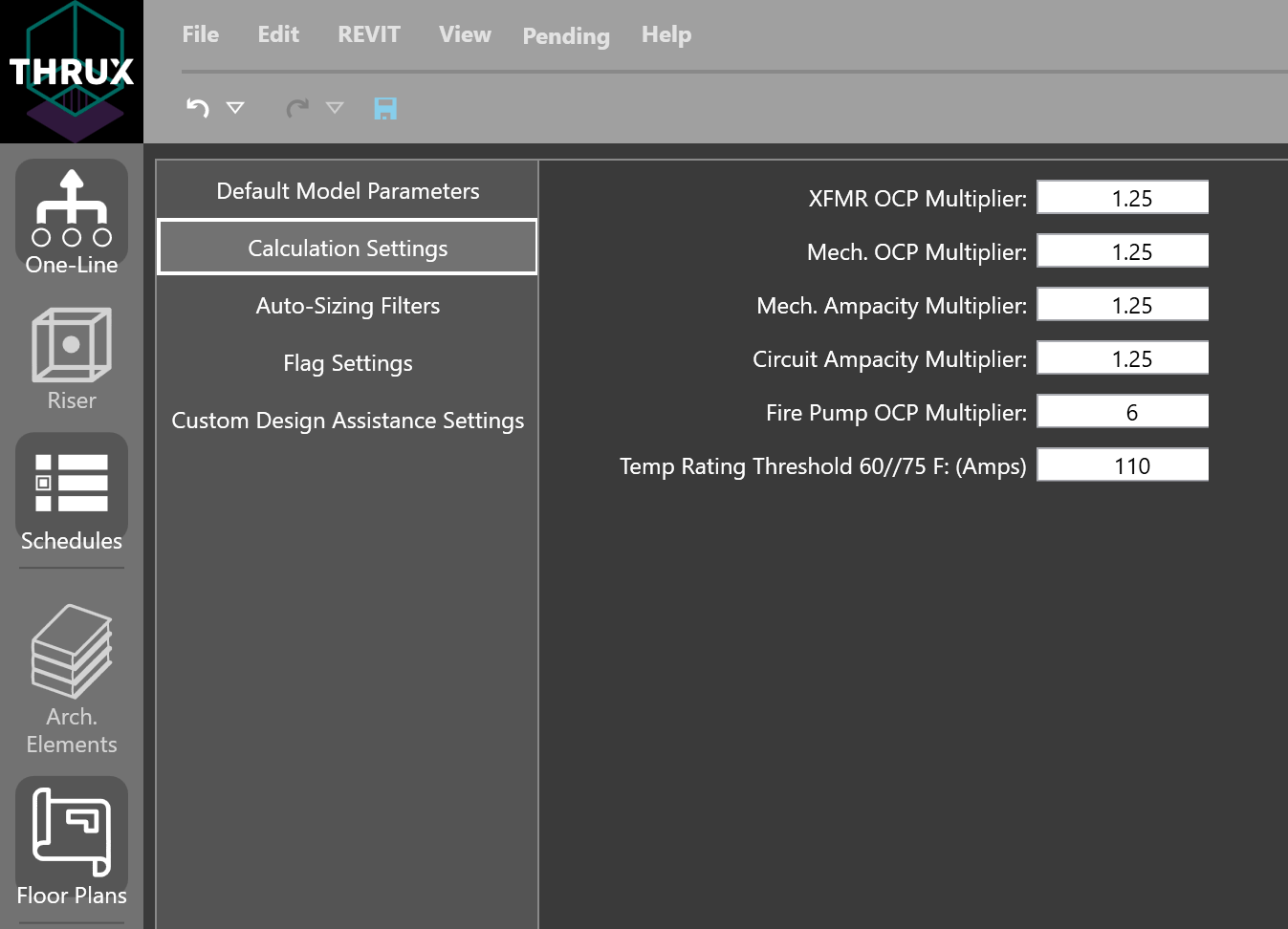

Calculation Settings

Property Name Definition
XFMR OCP Multiplier Multiplier is a factor which is multiplied by the Load Capacity of a transformer to size its protective device.
Mech. OCP Multiplier Multiplier is a factor which is multiplied by the Load Capacity of a Mechanical Equipment to size its protective device.
Fire Pump OCP Multiplier Multiplier is a factor which is multiplied by the Load Capacity of a Fire Pump to size its protective device.
